Conduit Heads
General Purpose
F7-1 Series

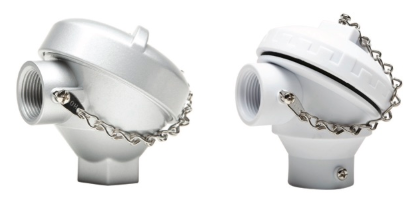

General purpose (GP) heads are rugged cast aluminum, stainless steel, or plastic units with vario NPT robed connection sizes and the choice of terminal block to fit your application. Flip top versions are also available.
- Utilizes DIN Transmitters and fits most terminal blocks.
NOTES:
- Rated NEMA 4x & IP68
| Specifications | ||||
|---|---|---|---|---|

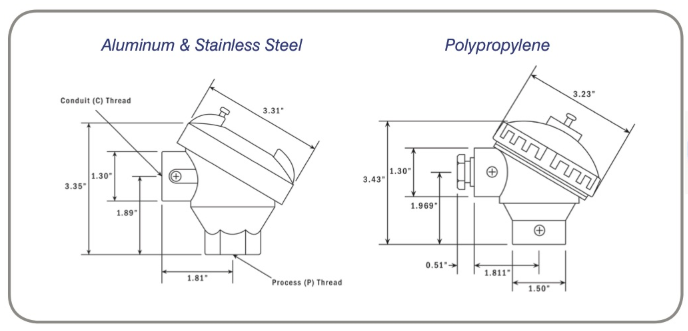

| Part No. | Material | thread Sizes (PE x CE) | ||
| F7-1-1212-AL F7-1-1234-AL F7-1-13434-AL | Aluminum | 1/2" x 1/2" NPT 1/2" x 3/4" NPT 3/4" x 3/4" NPT | ||
| F7-1-1212-SS F7-1-1234-SS F7-1-13434-SS | Stainless Steel | 1/2" x 1/2" NPT 1/2" x 3/4" NPT 3/4" x 3/4" NPT | ||
| F7-1-1212-PP F7-1-1234-PP F7-1-13434-PP | Polypropylene | 1/2" x 1/2" NPT 1/2" x 3/4" NPT 3/4" x 3/4" NPT | ||
