Heavy Duty Thermocouple Assemblies
with Metal Alloy Protection Tubes
A33 Series

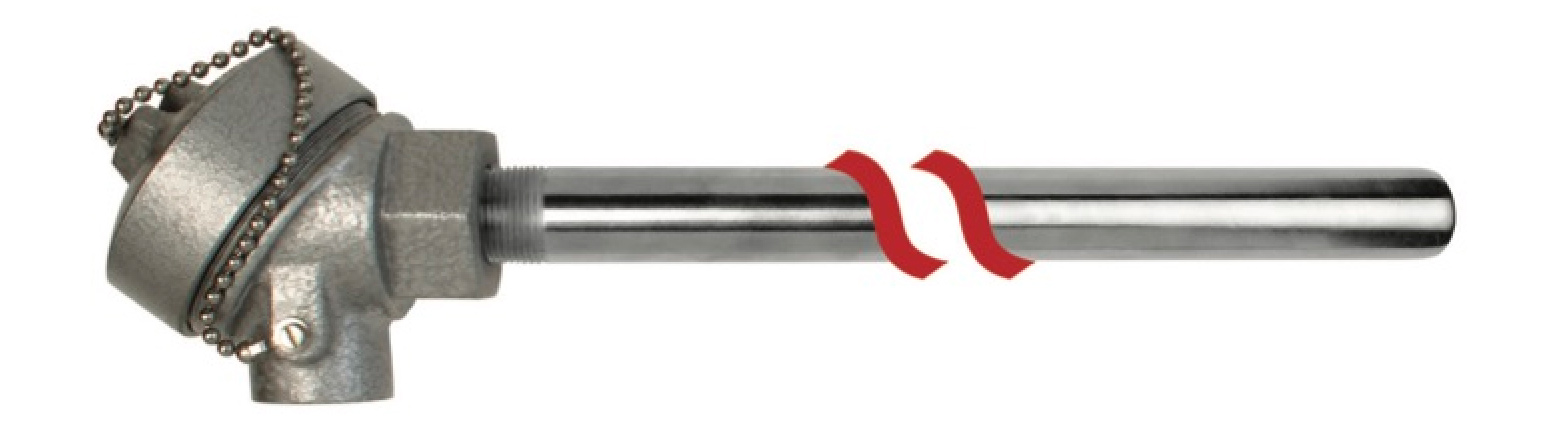

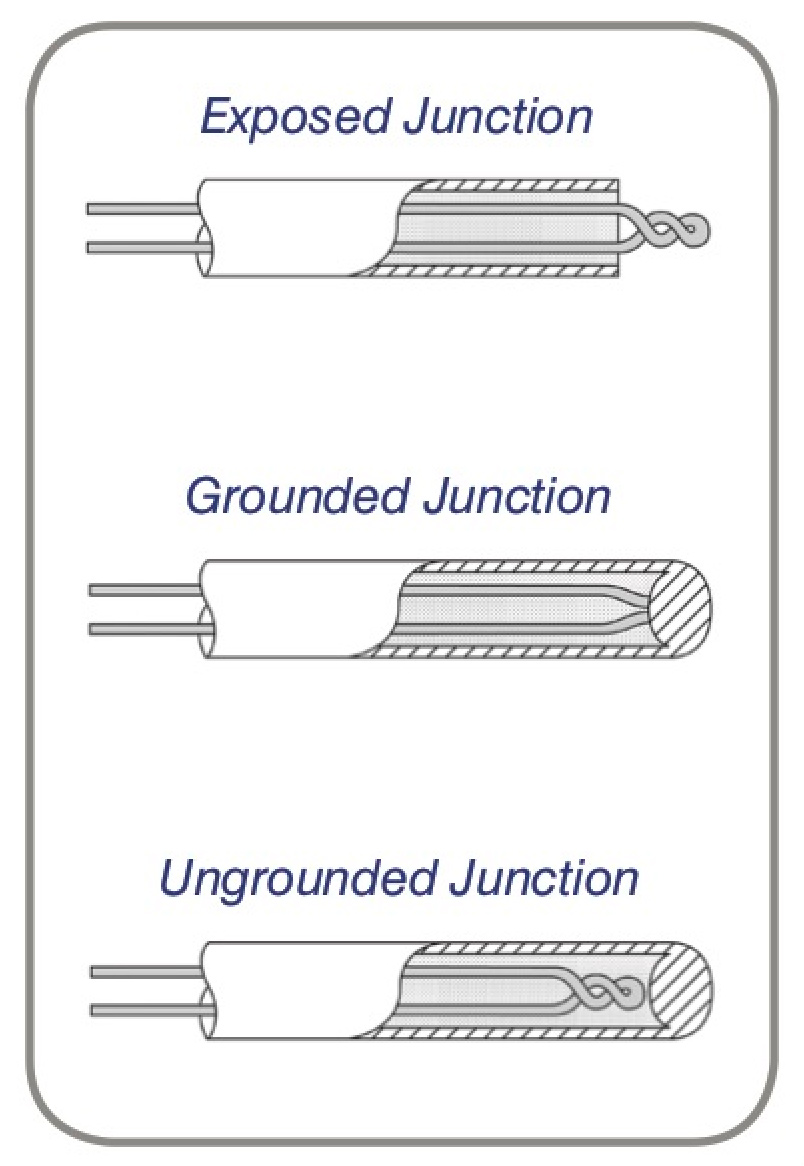

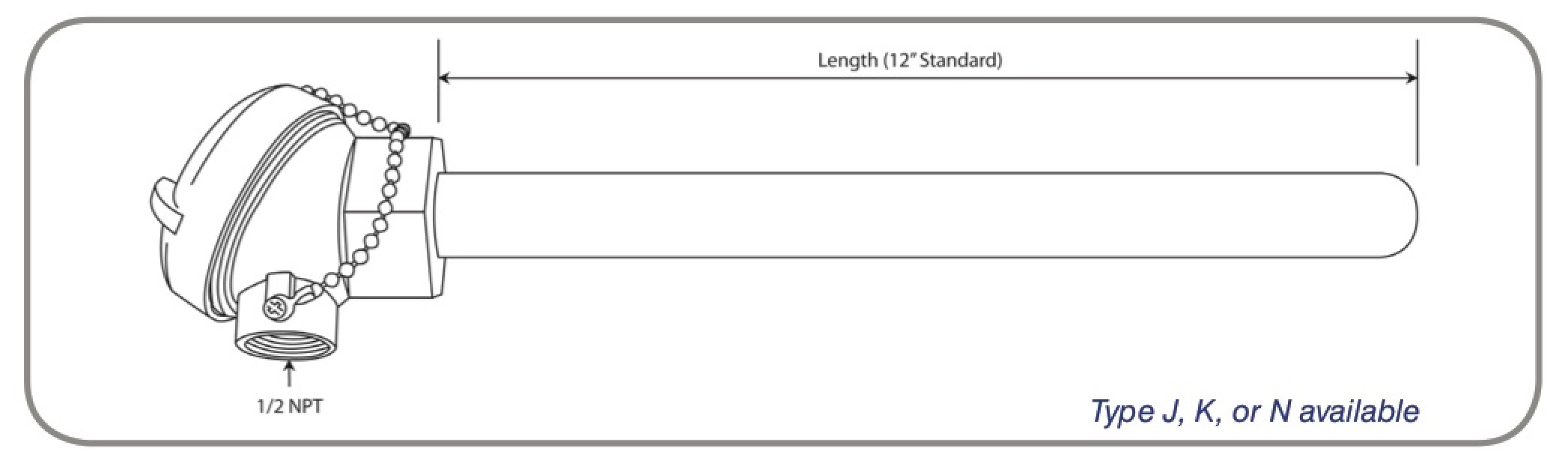

Our standard assembly consists of the metal alloy protection tube with a general purpose aluminum connector head attached. The connector head has a 1/2 NPT outlet port. This unit is assembled with a Chromel Alumel (Type K) ungrounded thermocouple with ceramic insulators and is connected to a two-wire ceramic terminal block in the connector head.
| Specifications | |||
|---|---|---|---|
| Part No. | Sheath Material | Max. Sheath Length | Sheath OD x ID (in.) |
| A33-10 A33-11 A33-12 A33-13 | Inconel 601 | 60 | 0.540 x 0.364 0.840 x 0.622 1.050 x 0.824 0.315 x 1.049 |
| A33-14 A33-15 A33-16 A33-17 | SS 304 | 60 | 0.540 x 0.364 0.840 x 0.622 1.050 x 0.824 0.315 x 1.049 |
| A33-18 A33-19 A33-20 A33-21 | SS 446 | 60 | 0.540 x 0.364 0.840 x 0.622 1.050 x 0.824 0.315 x 1.049 |
| A33-22 A33-23 A33-24 A33-25 | Carbon Steel | 60 | 0.540 x 0.364 0.840 x 0.622 1.050 x 0.824 0.315 x 1.049 |
| A33-26 A33-27 A33-28 A33-29 | Hastelloy C | 60 | 0.540 x 0.364 0.840 x 0.622 1.050 x 0.824 0.315 x 1.049 |
