Rail Mount Transmitters
Isolated
F11_50_Series
Special Ratings:
- For FM approved device, add suffix 'FM' to the part number.
- For ATEX approved device, add suffix 'ATEX' to the part number.
- Special_Ratings_point_3
- Special_Ratings_point_4
User Specified Information (programmed by NANMAC)
- Input Sensor Type
- Cold Junction (thermocouple only, defauk Is 32°F / 0 C}
- TemperaMre Scale °F or C
- Temperature Range (MII sensor range as default)
- Sensor Break Detection (upscale or downscale - upscale is default

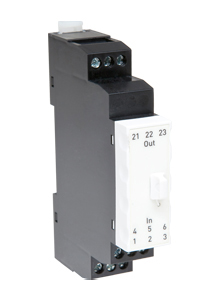

The F11-50RM is a universal, isolated two-wire transmitter. Used for temperature and other measurement applications, it combines competitive functionally and simple configuration. Useful error correction functions improve the accuracy. This device also has these special ratings: FM and , ATEX approved. All user specified information is programmed by Nanmac. Accepts RTDs, thermocouples, mV, and G.
| Temperature Ranges ans Specifications | |
|---|---|

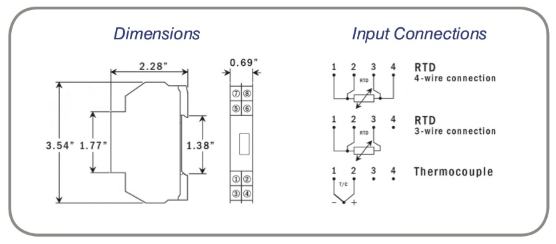

| Input RTD 3-,4-wire connection | R100 (a=0.00385) R1000 (a=0.00385) PtX10 aXx 1000 (a= 0.00385) R100 (a=0.003902) R100 (a=0.003916) Ni100 (1) Ni1000 (1) -200 to 1000 C / -328 to 1832 F -200 to 200 C / -328 to 392 F Upper Range Depending on X-VaIue -200 to 1000 C / -328 to 1832 F -200 to 1000 C / -328 to 1832 F -60 to 250 C / -76 to 482 F -00 to 150 C / 14 to 302 F |
| Input Potentiometer Resistance | Dight_Height_value |
| Operating Temperature | 3-,4-wire connection, 0-2000 |
| Input Thermocouples | Types: |
| Input mV | -10 to 500 mV |
| Sensor Failure | User Definable Output |
| Adjustments - Zero | Any value Within Range Limits |
| Munimum Spans | 100 eithter F or C |
| Output | 4-20 / 20-4 mA, Temperature Linear |
| Operating Temperature | -40 to 85 C / -40 to 185 F |
| Galvanic Isolation | 1500 VAC 1min. |
| Power Supply | F11-50: 6.S to 36 VDC F11-SCFM. 8 to 30 VDC F11-5&ATEX: 8 to 30 VDC |
| Intrinsic Satety | ATEX:II (1) G [EExia1 LIC T4-T6 FM:Class I-III, Div.1, Gr. A-G |
| Typical Accuracy | +0.1% of Temperature Span |
| Connection Head | DIN B or Larger |
