RTD Cable Assemblies
RTD_Series
Our RTD cable assemblies feature either fiberglass (FIB) insulation rated at 900 degrees Fahrenheit or teflon (TEF) insulation rated at 400 degrees Fahrenheit. Available in two, three, or four conductors. The standard plugs and jacks are rated to a continuous 400 degrees Fahrenheit.
- For (HT - high temperature) plugs and jacks rated to 806 degrees Fahrenheit, specify by adding the suffix HT.
- Standard 'Y' length is 36 inches +- 1 inch; if your length reguirement is different please specify. the pigtails use teflon shrink tubing.
NOTES:
- Custom design units are available; contact the factory with your specific requirement.
- When ordering, speciy part number and length. Example: A8H-RTD-31-72 specifies a 3 wire fiberglass insulated assembly with standard plug and jack, 72 inches long.
| Specifications | |||
|---|---|---|---|

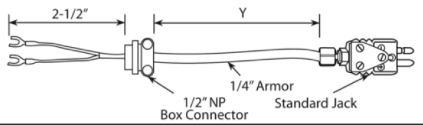

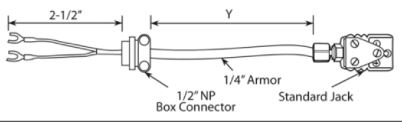

| Dimension Drawings | Part No. | Number of Wires | Type |
 | A8H-RTD-10 A8H-RTD-11 A8H-RTD-12 A8H-RTD-13 A8H-RTD-14 A8H-RTD-15 | 2 3 4 2 3 4 | FIB FIB FIB TEF TEF TEF |
 | A8H-RTD-20 A8H-RTD-21 A8H-RTD-22 A8H-RTD-23 A8H-RTD-24 A8H-RTD-25 | 2 3 4 2 3 4 | FIB FIB FIB TEF TEF TEF |
 | A8H-RTD-30 A8H-RTD-31 A8H-RTD-32 A8H-RTD-33 A8H-RTD-34 A8H-RTD-35 | 2 3 4 2 3 4 | FIB FIB FIB TEF TEF TEF |
