Rub & Contact Thermocouples
Ideal for Moving Surfaces: Drums . Fibers . Wire . Etc.
B6 Series
- NOTES:
- Specify part number and thermocouple type when ordering. Example. B6-1-K
| Specifications | |||||
|---|---|---|---|---|---|
| Part No. | Model | ||||
| B6-1 B6-2 B6-3 B6-4 B6-5 B6-6 | RDD with Mounting block FFM_with_Mounting_block RDD only FFM only Mounting block only | ||||

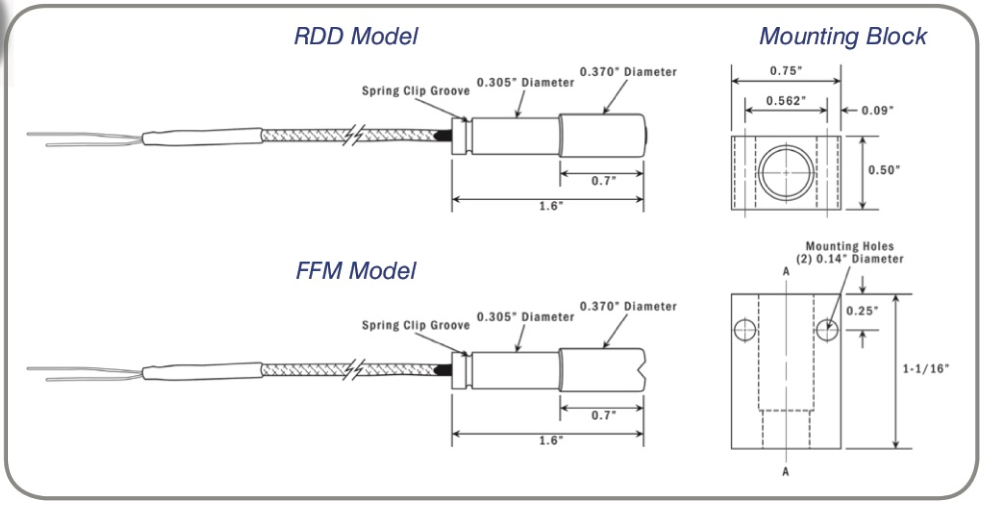

| Model RDD Thermocouple - Specifications | |
|---|---|
| Description | Soft brass disc brazed to thermocouple element, disc and thermocouple is mounted into a high temperature plastic housing, which is spring-loaded in the aluminum mounting block. Standard is 36 inches of fiberglass insulated leads, though most any lead configuration and plug assembly can be added. The device uses a spring rate of 5.83 lbs./in. |
| Application | Direct contact with rotatin g drum s and discs or moving plates and sh eets. |
| Performance | 30 second response time; 450 degrees Fahrenheit maximum service temperature. |
| Model FFM Thermocouple - Specifications | |
|---|---|
| Description | Self-renewin g thermal junction mounted in V-notch m achined in thermowell which spring-loaded inside aluminum mounting block. Three feet of fiberglass leads are standard. |
| Application | Direct contact with fine fibers an d metal wires, such as for controlling pre-in duction heaters during fiber processing, plastic coating of wires, fiber processin g, etc. |
| Performance | Response time: low milliseconds; 450 degrees Fahrenheit maximum service temperature; maximum wire speed: 3,000 fpm. Self-renewing junction provides accurate sensing until 3/8’” has worn off tip of FFM sensor. |
