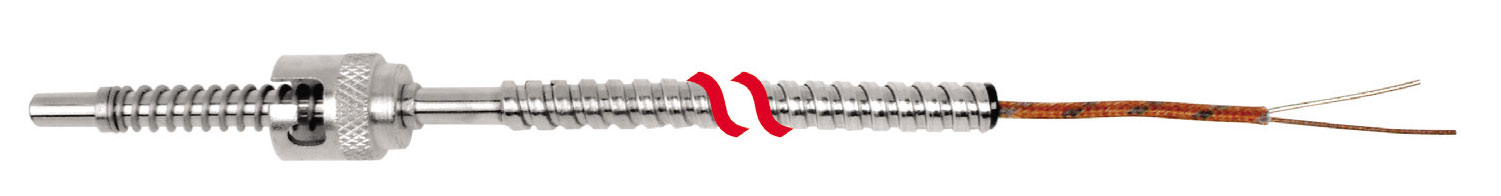

Spring-Loaded Bayonet Thermocouples
A5 Series
- NOTES:
- Available thermocouple types: E, J, K, N & T
- All standard units have a grounded junction. If ungrounded junction desired, add “U” to the Part No
- All standard units have 36 inches armored extension leads.
- All bayonet thermocouples are supplied without adaptors and connectors.
- Specify thermocouple calibration as follows. Example: A5-1-K, for type K

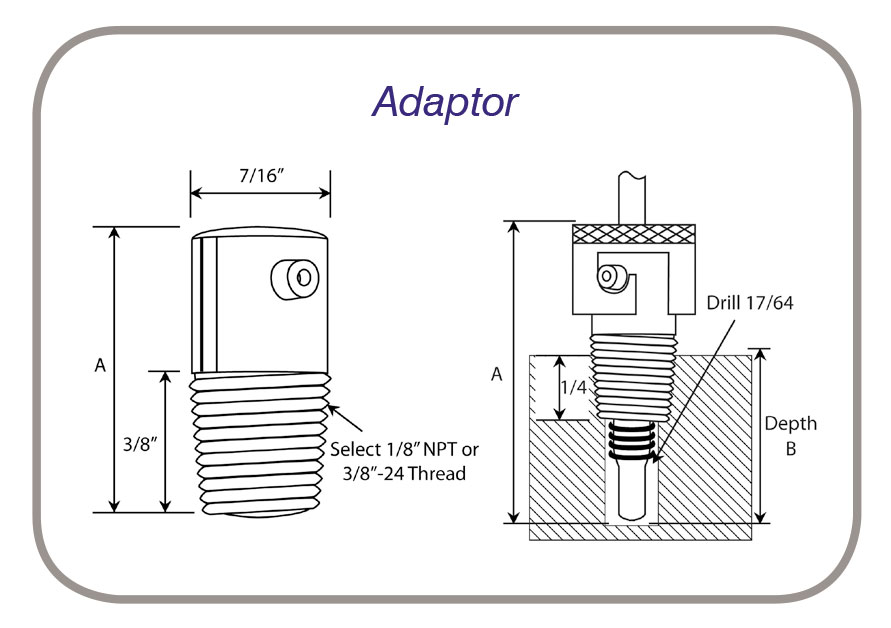

| Instructions for Hole Depth and Adaptors | |||
|---|---|---|---|
| Depth “B” (in.) | Length “A” | ||
| 7/8” long Adaptor | 1-3/8” long Adaptor | 2-1/2” long Adaptor | |
| 1/2 to 1 1 to 1-1/2 1-1/2 to 2 2 to 2-1/2 2-1/2 to 3 3 to 3-1/2 3-1/2 to 4 4 to 4-1/2 4-1/2 to 5 | 2 2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6 | 2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6 6-1/2 | 3-5/8 4-1/2 4-5/8 5-1/8 5-5/8 6-1/8 6-5/8 7-1/8 7-5/8 |
| Specifications | |||||
|---|---|---|---|---|---|
| Part No. | Model | Length “A” (in.) | Part No. | Model | Length “A” (in.) |

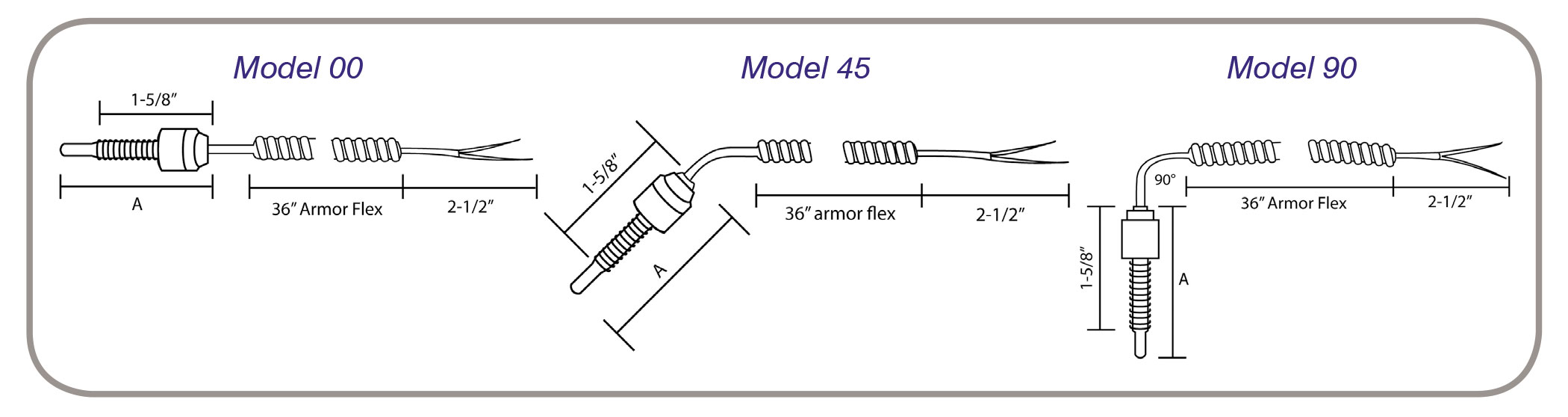

| A5-1 A5-2 A5-3 A5-4 A5-5 A5-6 A5-7 A5-8 A5-9 | 00 | 2 2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6 | A5-19 A5-20 A5-21 A5-22 A5-23 A5-24 A5-25 A5-26 A5-27 | 90 | 2 2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6 |
| A5-10 A5-11 A5-13 A5-14 A5-15 A5-16 A5-17 A5-18 | 45 | 2 2-1/2 3 3-1/2 4 4-1/2 5 5-1/2 6 | Specify thermocouple calibration All standard units have 36” armored extension leads. All bayonet thermocouples are supplied without adaptors and connectors. | ||
| Mounting Adaptors | |||||
| A5-10 A5-11 A5-12 A5-13 | 1/8 NPT | 7/8 1-3/8 2-1/2 | |||
| A5-31 A5-32 A5-33 | 3/8-24 NF | 7/8 1-3/8 2-1/2 | |||
