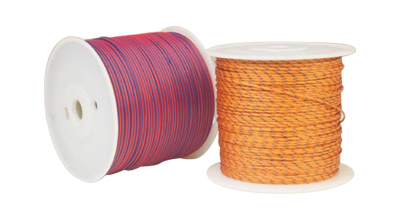

Thermocouple Extension Wire
G9 Series
When selecting: insulation, moisture, abrasion, flexing, chemical attack, temperature extremes, and other adverse environments must be evaluated. Insulations are rated for a maximum continuous use temperature. This maximum use temperature is for the insulation material, not the temperature at which the thermocouple operating. That temperature limit is based on the thermocouple design and calibration.
Thermocouple EXTENSION grade wire (denoted by an “X”) has approximately the same thermoelectric properties as thermocouple wire, but is only guaranteed accurate within a limited temperature range. Typically, under 400 degrees Fahrenheit. All thermocouple wire is supplied to your specified length.
Part Number = Insulation / Material / Wire Size
| Exten si on Wire for Types CX, E, J, K, N, RX, SX & T | ||||||||
|---|---|---|---|---|---|---|---|---|
| Insulation Material | CX | E | J | K | N | RX | SX | T |
| PVC over each/overall (801) rated to 175 F | - - | - 801EX20 | - 801JX20 | - 801KX20 | - - | - 801RX20 | - 801SX20 | 801T24 - |
| PVC shielded w/drain wire (805) rated to 175 F | - 805CX20 | - - | - 805JX20 | - 805KX20 | 805NX20 - | 805RX20 - | 805SX20 - | 805TX24 805TX24 |
| Teflon FEP wrapped (809) rated to 500 F | - - - | 809E30 809E24 - | 809J30 809J24 809J30 | - 809K24 809K20 | - - - | - 809RX24 809RX20 | - 809SX24 809SX20 | 809T30 809T24 809T20 |
| Teflon TFE extruded (810) rated to 400 F | - 810CX24 - | - 810E24 810E20 | 810J30 810J24 810J20 | 810K30 810K24 810K20 | - 810N24 - | - 810RX24 810RX20 | - 810SX24 810SX20 | 810T30 810T24 810T20 |
| Nextel braided (820) rated to 2,600 F | - - | - - | - - | 812K20 - | - 812N24 - | - - | - - | - - |
| Fiberglass braided (828) rated to 900 F | - - - 828CX20 | - - 828E24 828E20 | 828J30 - 828J24 828J20 | 828K30 828K28 828K24 828K20 | - - 828N24 - | - - 828RX24 828RX20 | - - 828SX24 828SX20 | - 828T28 - 828T20 |
| Temperature Ranges and Accuracy of Thermocouples & RTDs | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Temperature Ranges by Sensor Type | |||||||||||
| Useful Range | B | C | B | E | J | K | N | R | S | T | pt100 |
| C F | 0 / 1,700 32 / 3,092 | 0 / 2,320 0 / 4,230 | 0 / 2,320 0 / 4,230 | -200 / 900 -328 / 1,652 | -0 / 750 32 / 1,382 | -200 / 1,250 -328 / 2,282 | -270 / 1,300 -454 / 2,372 | 0 / 1,450 32 / 2,642 | 0 / 1,450 32 / 2,642 | -200 / 350 -328 / 662 | -200 / 850 -328 / 1,562 |
| C / F | |||||||||||
| -200 / -328 -100 / -148 0 / 32 200 / 392 400 / 752 600 / 1.112 800 / 1,472 1,000 / 1,832 1,200 /2,192 1,400 / 2,552 1,600 / 2,912 1,800 / 3,272 2,000 /3,632 2,300 / 4,172 | - - - - - - 0.5 0.5 0.5 0.5 0.5 - - - | - - - - 4.5 C 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 | - - - - 4.5 C 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 | 1.0 1.0 1.0 0.5 0.5 0.5 0.5 - - - - - - - | - - 0.75 0.75 0.75 0.75 - - - - - - - - | 2.0 2.0 0.75 0.75 0.75 0.75 0.75 0.75 0.75 - - - - - | 2.0 2.0 0.75 0.75 0.75 0.75 0.75 0.75 0.75 - - - - - | - - 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 - - - - | - - 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 - - - - | 1.5 1.5 1.5 1.0 1.0 - - - - - - - - - | 0.65 0.8 0.3 0.8 0.55 0.55 0.55 - - - - - - - |
