      Thermowells

      Limited Space for 1/4” Diameter Elements

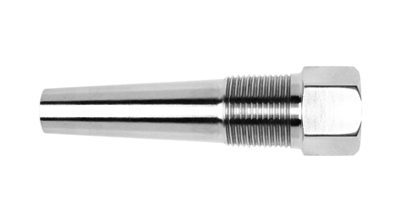

      A29 Series

      These thermowells are used where short insertion lengths are required, as in short legs of tee, etc. Available in stainless steel SS 304, SS 316, brass ASTM-B16, carbon steel C-1020, and monel. Choice of 1/2 inch NPT, 3/4 inch NPT, or one inch NPT external threads.

      Limited Space
        note

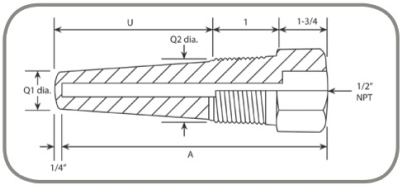

      • On 1/2 inch hIPT exlernal threads, the “U“ dimension becomes one inch to accommodate the 1/2 inch NPSM female
      • Stainless steel or brass compression fittings are available for mounting pro bes into these tnermowells.
      • The (brass cap - BRcap) and chain is available for keeping well bore clean when not in use. If caap and chain is desired add BRcap to the part number.
      • IIff (ssttaaiinnlless steel - SScaPp) and chain is desired, add SScap to the part number.
      • Urder by part number as indicated
      Limited Space
      Specifications
      Part No.MaterialExterior ThreadMaximum Fluid Velocity (feet per second)
      A29-1
      A29-2
      A29-3
      A29-4
      A29-5      		SS304
      SS316
      Brass
      C-1020
      Monel       		1/2'NPT300
      300
      207
      290
      261
      A29-6
      A29-7
      A29-8
      A29-9
      A29-10      		SS304
      SS316
      Brass
      C-1020
      Monel       		3/4' NPT300
      300
      207
      290
      261
      A29-6
      A29-7
      A29-8
      A29-9
      A29-10      		SS304
      SS316
      Brass
      C-1020
      Monel       		1' NPT300
      300
      207
      290
      261
