We offer PFA Teflon® expanded tubing with one end closed for heat shrinking onto probes from 1/16 inch diameter to 1/4 inch diameter and lengths of 60 inches. This PFA tubing is rated at 260 degrees Celsius (450 degrees Fahrenheit) maximum continuous service temperature. These tubes can be shrunk onto the thermocouple or RTD probe with a hot air gun at 300 degrees Fahrenheit. The PFA Teflon® coated probes are ideal for use in caustic or corrosive chemical solutions. The temperature of sulfuric, hydrochloric, nitric, and chromic acids can be measured at temperatures up to 450 degrees Fahrenheit. Thermocouple and RTD probes can also be encapsulated with PFA Teflon® at time of manufacture at a small surcharge.

Teflon Tubing w/ Encapsulation

We offer two styles of adjustable compression fittings for use in mounting thermocouples into thick or thin walls. One style uses a standard NPT pipe thread while the other uses a straight thread with 0-ring seal. Both are typically available from stock in 316 stainless steel (brass upon request).
Both styles are available for probe diameters from 1/16" to 1.0" OD. (other sizes upon request). The O-ring style is also ideal for use in thin-wall applications, glass containers, jar lids, etc. Simply put a jam nut on other side of container lid.

Adjustable Compression Fittings

Prongs and inserts match thermocouple calibrations to maintain sensing accuracy. Alloy and polarity are identified by symbols molded into body. Molded from a glass filled thermoset compound for high strength, these connectors are color coded to thermocouple calibration and can be used in ambient temperatures of a continuous 400 degrees Fahrenheit and an intermittent 500 degrees Fahrenheit. High temperature connectors are all color coded 'Red' with an ambient temperature of a continuous 800 degrees Fahrenheit and an intermittent 1,000 degrees Fahrenheit. Inserts have a spring loaded collet assuring full positive contact. The negative insert is larger preventing mismatching.

Standard 2 Pole & 3 Pole Connectors

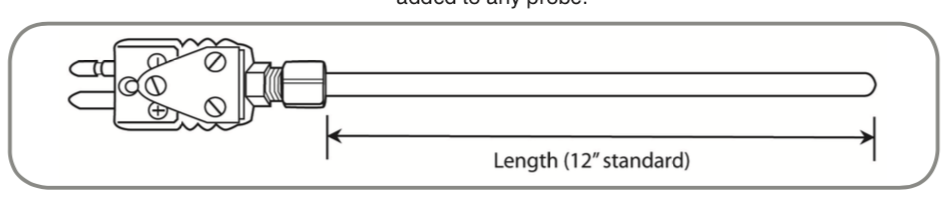

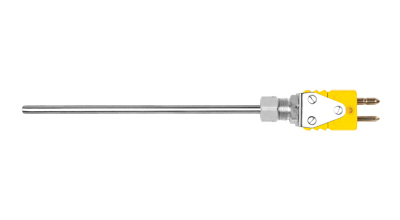

This thermocouple probe comes with the appropriate, color coded, male connecrtor attached and the female connector (not shown) furnished with a cable clamp. Maximum service temperature of connectors is 450 degrees Fahrenheit. If other connectors are required, contact the factory.

هذا التحقيق الحرارية يأتي مع المناسبة، ونا مميزا، connecrtor الذكور المرفقة والإناث موصل (لا يظهر) مفروشة مع المشبك كابل. درجة الحرارة خدمة الحد الأقصى لعدد الموصلات هي 450 درجة فهرنهايت. إذا كانت هناك حاجة الروابط الأخرى، اتصل المصنع.

Tento termočlánek je sonda s příslušným, barevně kódovaná, mužské connecrtor připojené a vnějším konektorem (není znázorněno), opatřeného kabelové svorky. Maximální provozní teplota konektorů je 450 stupňů Fahrenheita. Pokud jsou požadovány jiné konektory, obraťte se na závod.

Diese Thermoelement-Sonde wird mit der entsprechenden, farbkodiert, männlich connecrtor befestigt, und die Buchse mit einer Kabelklemme ausgestattet (nicht gezeigt). Maximale Einsatztemperatur von Steckverbindern ist 450 Grad Fahrenheit. Wenn andere Anschlüsse erforderlich sind, wenden die Fabrik.

Αυτός ο ανιχνευτής θερμοστοιχείου έρχεται με το κατάλληλο, χρώμα που κωδικοποιείται, αρσενικό connecrtor επισυνάπτεται και το θηλυκό συνδετήρα (δεν δείχνεται) παρέχεται με ένα σφιγκτήρα καλωδίου. Η μέγιστη θερμοκρασία λειτουργίας των συνδέσμων είναι 450 βαθμοί Φαρενάιτ. Αν οι άλλες συνδέσεις που απαιτούνται, επικοινωνήστε με το εργοστάσιο.

Esta sonda termopar viene con el caso, un código de color, connecrtor macho unido y el conector hembra (no mostrado) provisto de una abrazadera de cable. temperatura de servicio máxima de los conectores es de 450 grados Fahrenheit. Si se requieren otros conectores, póngase en contacto con la fábrica.

Cette sonde à thermocouple est fourni avec le connecrtor approprié, un code de couleur, de sexe masculin fixé et le connecteur femelle (non représenté) muni d'un serre-câble. température de service maximale de connecteurs est de 450 degrés Fahrenheit. Si d'autres connecteurs sont nécessaires, contactez l'usine.

Questa sonda termocoppia viene con l'appropriato codice colore, connecrtor maschio divisoria e il connettore femmina (non illustrato) fornito con il serracavo. temperatura massima di esercizio di connettori è 450 gradi Fahrenheit. Se sono necessari altri connettori, contattare la fabbrica.

この熱電対プローブは、ケーブルクランプが備わって取り付けられ、適切な、色分けされた、男性connecrtorと雌コネクタ（図示せず）が付属しています。コネクタの最高使用温度は華氏450度です。他のコネクタが必要な場合は、工場にお問い合わせください。

이 열전쌍 프로브는 적절한 코딩, 색 부착 connecrtor 남성 및 케이블 클램프 갖추고 암형 커넥터 (미도시)로 온다. 커넥터의 최고 사용 온도는 450 개도 화씨입니다. 다른 커넥터가 필요한 경우 공장에 문의하십시오.

Esta sonda termopar vem com o apropriado, cor codificada, connecrtor macho ligado e o conector fêmea (não mostrado) equipado com uma braçadeira para cabos. temperatura máxima de serviço de conectores é de 450 graus Fahrenheit. Se outros conectores são necessários, entre em contato com a fábrica.

Эта термопара датчик поставляется с соответствующим цветом, закодированным, мужской connecrtor прилагается и охватывающий соединитель (не показан), с мебелью с кабельным зажимом. Максимальная рабочая температура разъемов составляет 450 градусов по Фаренгейту. Если другие разъемы необходимы, обратитесь к изготовителю.

Denna termoelementsond kommer med den lämpliga, färgkodade, manlig connecrtor bifogas och honkontakten (ej visad) försedd med en kabelklämma. Maximal driftstemperatur av kontaktdon är 450 grader Fahrenheit. Om andra anslutningar krävs kontakta fabriken.

Bu Termo çift sonda, kodlanmış uygun renk, bağlı erkek connecrtor ve kablo kelepçesi ile döşenmiş dişi konektöre (gösterilmemiştir) ile donatılmıştır. konnektörleri maksimum hizmet sıcaklığı 450 derece Fahrenheit. Diğer konnektörleri gerekliyse, fabrika başvurun.

bộ dò nhiệt này đi kèm với sự phù hợp, màu sắc mã hóa, connecrtor nam kèm theo và kết nối nữ (không hiển thị) trang bị kẹp cáp. nhiệt độ dịch vụ tối đa kết nối là 450 độ Fahrenheit. Nếu kết nối khác được yêu cầu, hãy liên hệ nhà máy.

这种热电偶探头配有适当的，彩色编码，男性附connecrtor和阴连接器（未示出）配有电缆夹。连接器的最高工作温度为450华氏度。如果需要其他连接器，请联系厂家。

Products / Mineral Insulated Thermocouples (to 1350°C) / MI Cable w/ Std Size Connector

MI Cable w/ Std Size Connector
